New

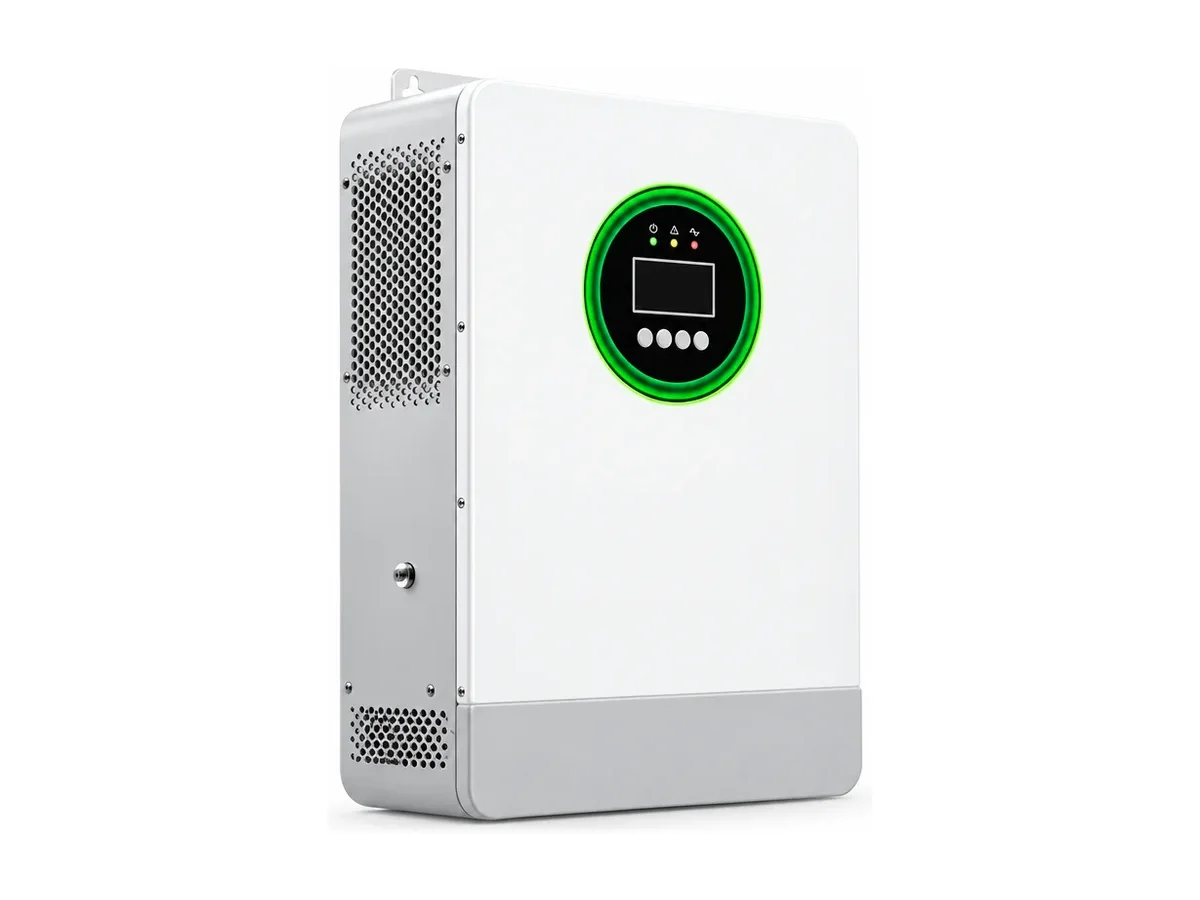

TURSAN JC-AC-6KW

Name: TURSAN JC-AC-6KW
Brand: TURSAN
SKU: product-19
Price: 450500 NGN
Availability: InStock

★★★★★

₦450,500 ₦519,999

A 6kW hybrid solar inverter for serious home backup. Pairs with our 48V TURSAN lithium batteries, takes up to 9000W of solar, switches over in under 10ms and lets you watch everything on your phone over Wi-Fi.

₦450,500

☀ Recommended solar panels

7 × Taekmo 650W Most power≈ 4,550W of solar · ₦170,500 each→

8 × Haitai 595W Best value≈ 4,760W of solar · ₦130,500 each→

One string; add a second string to go up to ~9kW. Choose one panel type. Mounting & installation not included.

📦 Lagos — pay only after you have inspected itCash, POS or bank transfer at your door. Check the unit before any money changes hands.

🚚 Free Lagos delivery — arrives in 1–3 business days🚌 Outside Lagos: sent by inter-state bus (waybill), ₦10,000–₦25,000 by region — shown at checkout. Details🛡 24-month warranty on all units✅ Battery bank & panels sold separately

6kW / 6kVA48V Lithium Ready9000W Solar Input≤10ms SwitchoverWi-Fi MonitoringParallel up to 92-Year Warranty6kW / 6kVA48V Lithium Ready9000W Solar Input≤10ms SwitchoverWi-Fi MonitoringParallel up to 92-Year Warranty

9000W Solar Input

Wide 60–450V PV range with built-in MPPT. Panels wire straight in — no separate charge controller.

6kW Pure Sine Wave

Clean 230V for ACs, pumps, fridges and electronics together. Switches to battery in 10ms or less.

Wi-Fi Monitoring

Check solar, battery and load from your phone. RS485 / CAN talk to lithium battery BMS.

Grows With You

Run up to 9 units in parallel. Start with one and add more as your home or business grows.

Load Capacity

What It Can Run

6kW continuous. Everything below can run together. How long it runs is decided by your battery bank, not by the inverter.

Two 1.5HP ACs

cooling two rooms

typical draw

Fridge + Freezer

runs continuously

typical draw

Pumping Machine (1HP)

on demand

typical draw

6 Ceiling Fans

all at once

typical draw

TVs + Decoder + Wi-Fi

evening setup

typical draw

25 LED Bulbs

whole house

typical draw

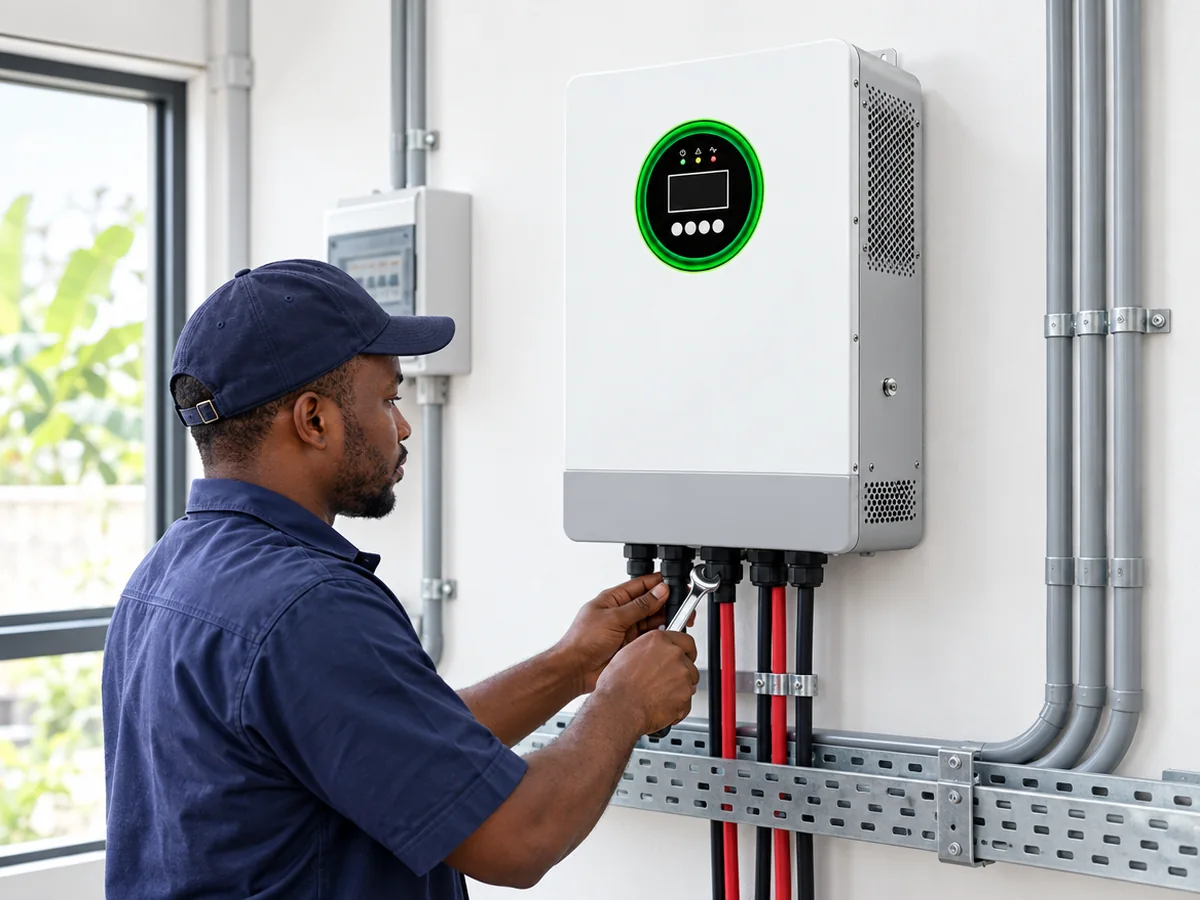

Wiring

How It Connects

Solar, grid and battery all connect at once — it decides which to use.

Solar In

MPPT · up to 9000W

60–450Vdc

input

48V Battery Bank

48–60Vdc · 120A max charge

51.2V LiFePO₄

input

Grid / Generator In

UPS mode 170–280Vac

90–280Vac

input

AC Out

6kW continuous

230Vac ±5%

output

Before You Buy

What You Still Need

A 48V Battery Bank

not included

A 51.2V LiFePO₄ bank such as our TSA-LFP48-100, LFP-48-200 or LFP48-320. It does not work with 12V or 24V batteries.

Solar Panels

optional, not included

Any array landing between 60V and 450V, up to 9000W. Without panels it charges from the grid or a generator.

Not Sure What Size?

we will work it out

Send us your load list on WhatsApp and we will size the battery bank and panels. No obligation.

Technical

Specifications

General

Name: Hybrid Pure Sine Wave Inverter
Model: JC-AC-6KW
Transfer Time: ≤10ms
Parallel Capability: Yes, up to 9 units
Noise: <50dB
Protection Rating: IP20 (indoor)
Communication: RS485 / RS232 / CAN / Wi-Fi

In the Box

Inverter: JC-AC-6KW unit
Cables: Connection cables included
Mounting: Wall hooks and expansion screws (no separate bracket)
Docs: User manual
Not included: House wiring, breakers, battery and panels

Output

Rated Output Power: 6000W
Nominal Output Voltage: 230Vac ±5%
Output Waveform: Pure sine wave

Input

AC Input: 220/230/240Vac, live + neutral + earth
AC Input Voltage Range: Normal mode 90–280Vac; UPS mode 170–280Vac (±3V)
Input Frequency: 50/60Hz ±0.1%
Battery Voltage Range: 48–60Vdc
Max Solar (PV) Power: 9000W
PV Input Voltage Range: 60–450Vdc
Max AC Charging Current: 120A

Additional Info

Humidity: 5%–95%
Operating Temp: −15°C ~ 60°C
Dimensions (L×W×H): 330 × 114.8 × 460 mm
Weight: ≤8.5 kg

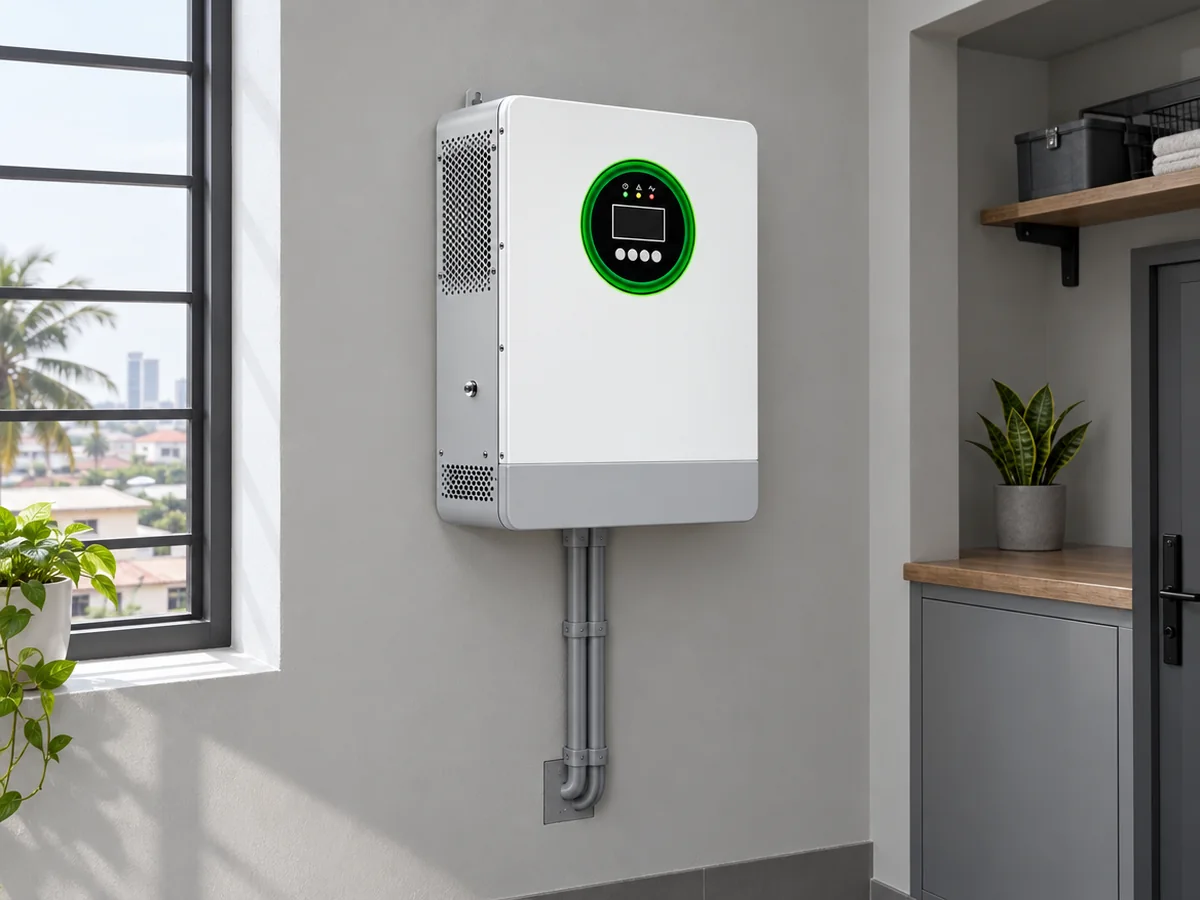

Mounting: Wall-mounted
Pairs With: 48V (51.2V) LiFePO₄ battery
Warranty: 2 Years

Questions

Frequently Asked Questions

Which batteries work with it?

Any 48V (51.2V) lithium bank — our TSA-LFP48-100 (5.22kWh), TSA-LFP-48-200 (10.44kWh) or TSA-LFP48-320 (15.36kWh). It will not work with 12V or 24V batteries.

Can it run air conditioners?

Yes. 6kW continuous runs two 1.5HP ACs alongside a fridge, freezer, fans and lights. How long depends on your battery bank.

How long will it run during a blackout?

That depends on the battery. A 10.44kWh bank runs a 1kW load for about 9 hours; a 15.36kWh bank for about 13 hours.

Do I need a separate solar charge controller?

No. The MPPT controller is built in. Panels wire straight to the inverter, 60–450V, up to 9000W.

Will my lights flicker when the grid goes?

It switches to battery in 10ms or less, so lights, TVs and computers keep running.

Can I add more later?

Yes. Up to 9 units run in parallel, and 48V batteries can be added to extend runtime.

How long is the warranty?

2 years, same as every unit we sell.
