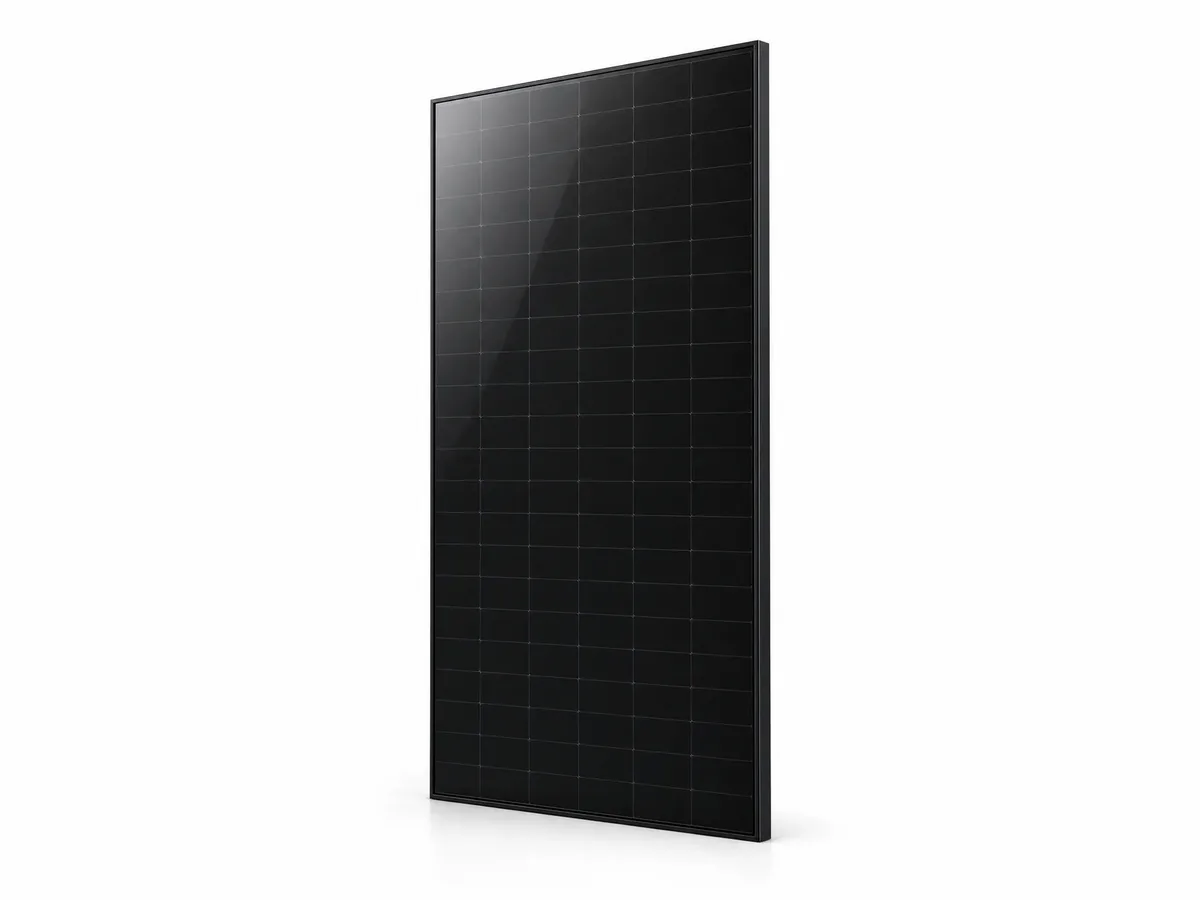

Taekmo 650W Bifacial Solar Panel

Name: Taekmo 650W Bifacial Solar Panel
Brand: Taekmo
SKU: product-21
Price: 170500 NGN
Availability: InStock

Model TKM9D72B-650 · sold per panel

₦170,500 ₦187,500 per panel

Launch price — save ₦17,000 off the regular ₦187,500.

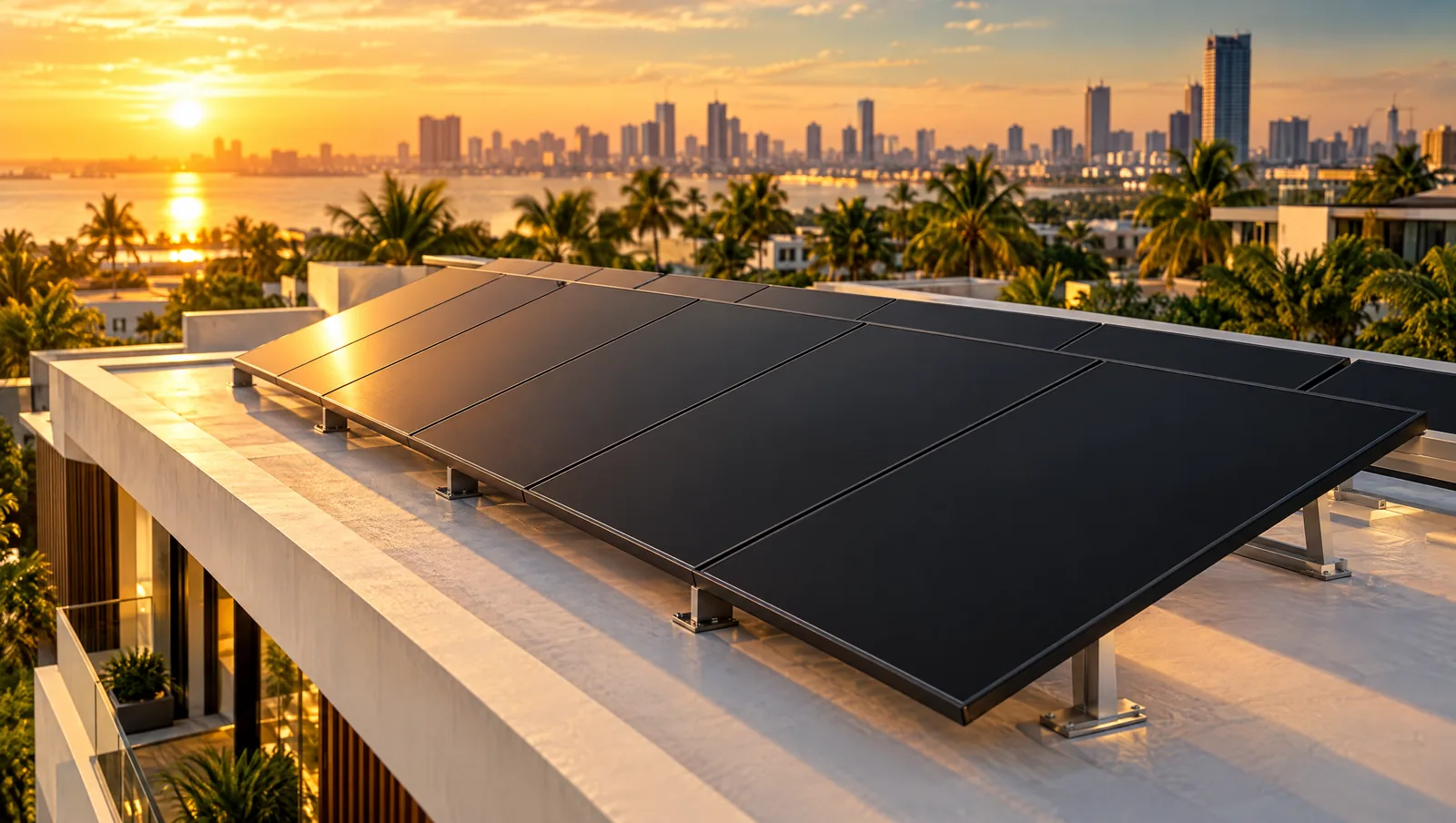

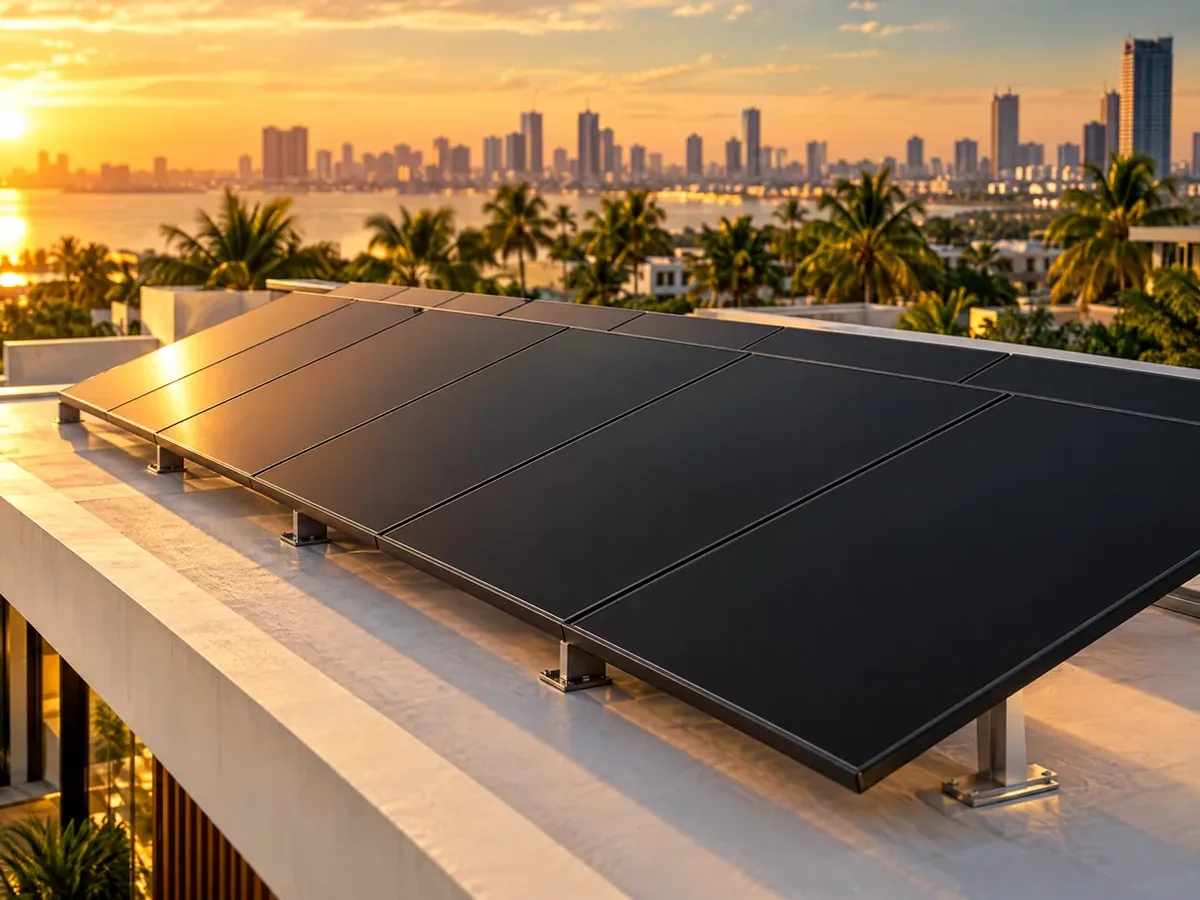

Our premium panel. N-type back-contact (TBC) cells hide every wire behind the cell, so the face is pure black glass and more of it catches sunlight — 24.06% efficiency. Glass on both sides, a corrosion-proof composite frame and the lowest heat loss in our range make it ideal for hot Nigerian rooftops.

₦170,500

Works with your TURSAN system

TURSAN JC-AC-6KW inverterUp to 7 panels per string · 9kW solar input→

TURSAN JC-YT-5K all-in-one4–6 panels in one string (up to 4kW)→

TURSAN JC-AC-3.6KW inverter3–5 panels in one string→

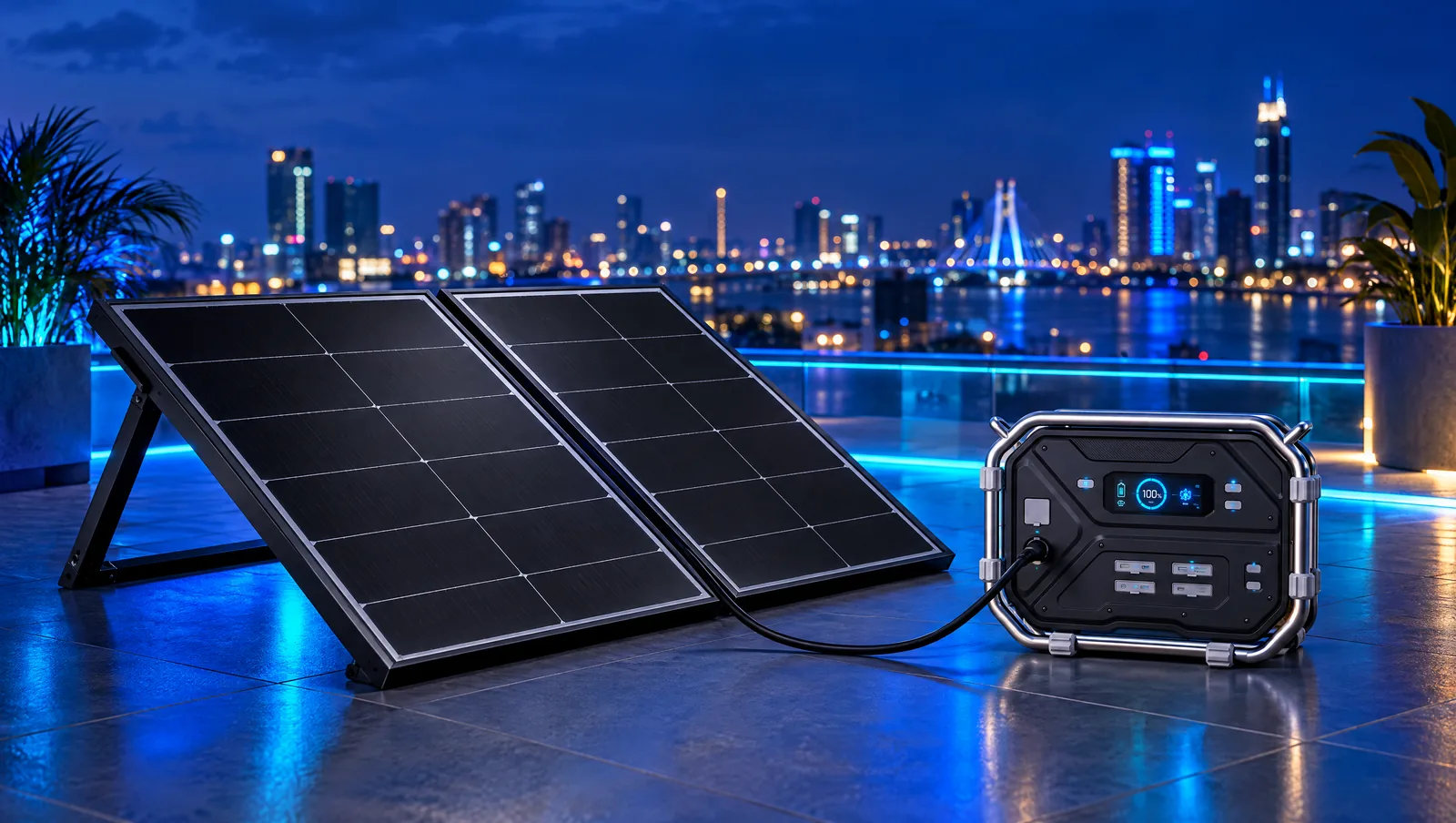

TURSAN YC 2400 Classic2 panels in series (≈1.3kW)→Not sure how many panels? Use the sizing calculator →

📦 Lagos — pay only after you have inspected itCash, POS or bank transfer at your door. Check every panel before any money changes hands.

🚚 Free Lagos delivery — arrives in 1–3 business days🚌 Outside Lagos: sent by inter-state bus (waybill), ₦10,000–₦25,000 by region + ₦5,000 per panel — shown at checkout. Details🛡 24-month warranty🔧 Mounting kit & installation not included

650W Output24.06% EfficiencyN-Type TBC CellsBifacial Dual-GlassAll-Black DesignIP68 Junction Box2-Year Warranty650W Output24.06% EfficiencyN-Type TBC CellsBifacial Dual-GlassAll-Black DesignIP68 Junction Box2-Year Warranty

650W of Real Power

N-type back-contact cells with no front busbars — more of the panel turns sunlight into power.

Built for the Heat

Loses only 0.26% per °C above 25°C, so it holds more of its power on a hot Lagos roof.

Glass on Both Sides

Bifacial dual-glass build collects reflected light from below and resists cracking and moisture.

Corrosion-Proof Frame

Glass-fibre reinforced polyurethane frame will not rust — good for coastal areas like Lagos.

Inside the Panel

What It’s Made Of

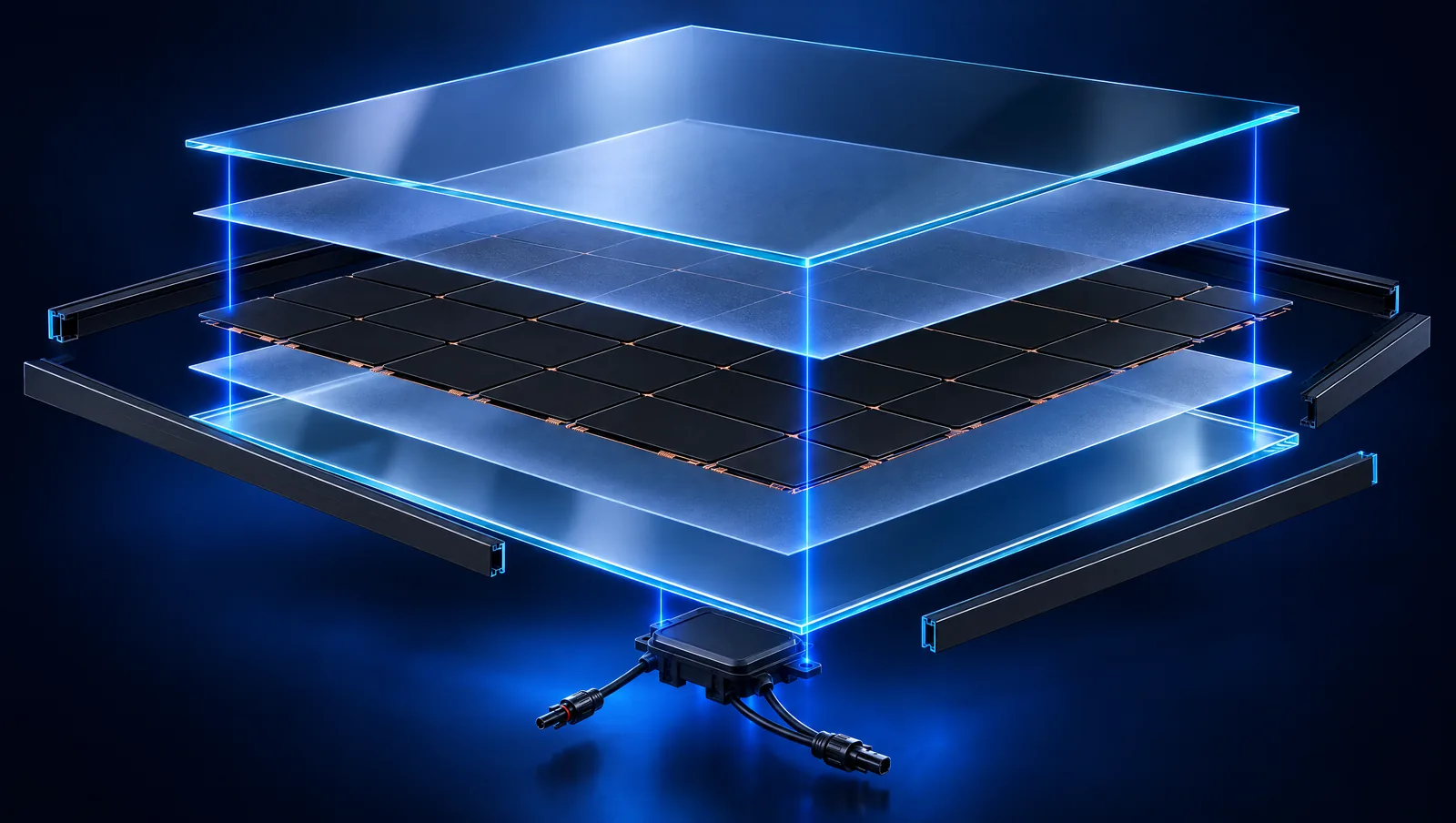

Exploded view of the Taekmo 650W solar panel layers

1Front glass2.0mm coated semi-tempered glass
2EncapsulantSeals and protects the cells
3N-type TBC cells144 back-contact cells (6 × 24), no front busbars
4EncapsulantSecond protective layer
5Rear glass2.0mm semi-tempered glass — lets light in from behind
6FrameGlass-fibre reinforced polyurethane

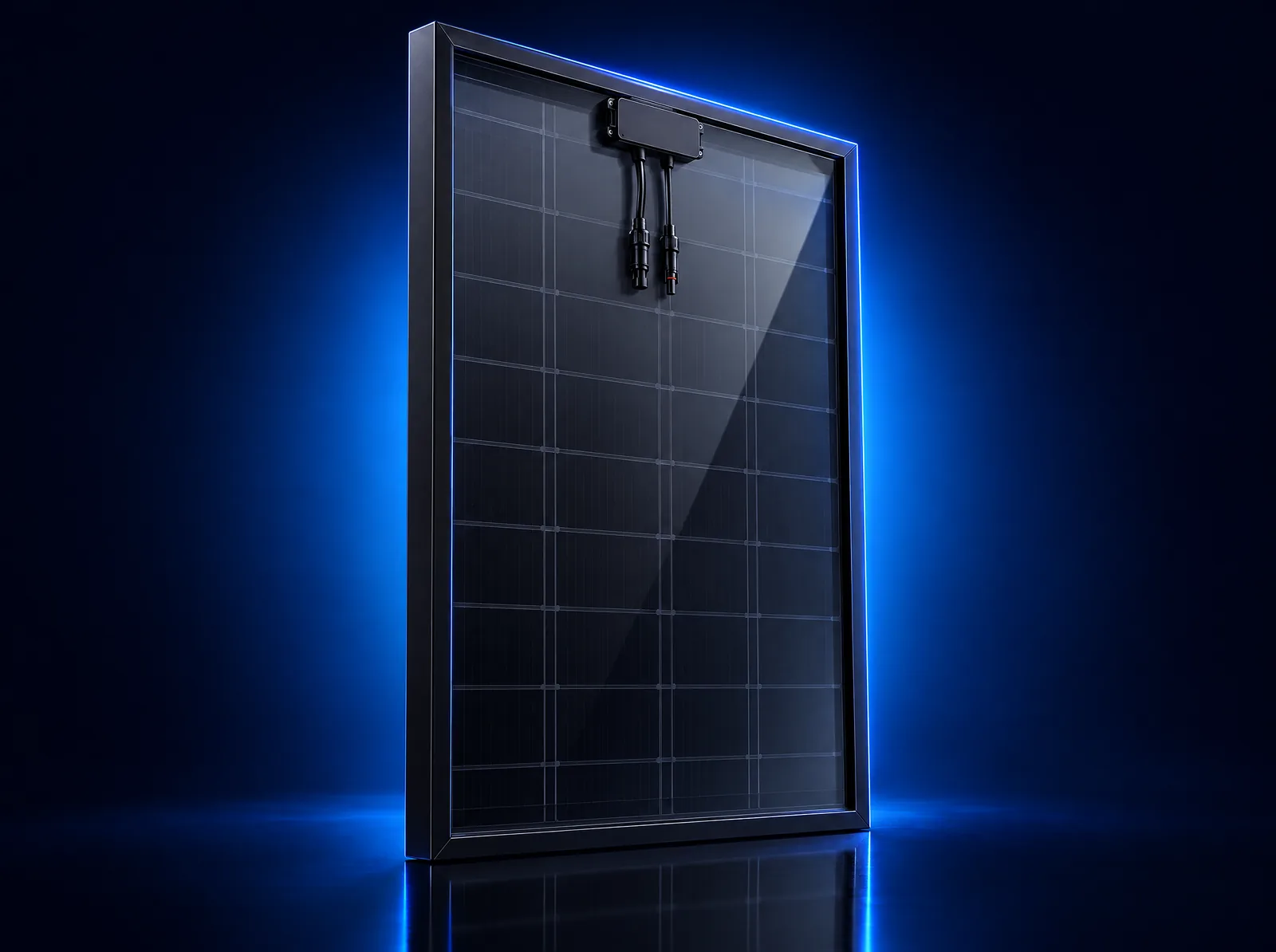

7Junction boxIP68, 3 bypass diodes, MC4-compatible connectors

Illustration for explanation; layers are bonded together in the real panel.

Before You Buy

What You Still Need

An Inverter or Power Station

to use the power

Panels make DC power. Connect them to a TURSAN inverter such as the JC-AC-6KW or a power station like the YC 2400 Classic.

Mounting & Installation

not included

Rails, clamps, PV cable and an installer. Each panel is about 2.3–2.4m long, so plan roof space before you order.

Not Sure How Many?

we will work it out

Send us your load list on WhatsApp and we will size the panels for your system. No obligation.

Technical

Specifications

Electrical (STC)

Max Power (Pmax): 650W
Open-Circuit Voltage (Voc): 54.00V
Short-Circuit Current (Isc): 15.06A
Voltage at Max Power (Vmp): 45.30V
Current at Max Power (Imp): 14.35A
Module Efficiency: 24.06%
Power Tolerance: ±3%

Real-World (NMOT)

Max Power: 493W
Voc: 51.23V
Isc: 12.17A
Vmp: 42.98V
Imp: 11.48A
Conditions: 800W/m², 20°C ambient

Mechanical

Cell Type: N-type TBC (back-contact), mono
No. of Cells: 144 (6 × 24)
Bifaciality: 70% ±5%
Dimensions: 2382 × 1134 × 30 mm
Weight: 32.3 kg
Front / Back Glass: 2.0mm semi-tempered / 2.0mm semi-tempered
Frame: Glass-fibre reinforced polyurethane
Junction Box: IP68, 3 bypass diodes
Cable / Connector: 4mm², 350mm(+) / 250mm(−), MC4 compatible

Ratings & Certifications

Temp. Coefficient (Pmax): −0.26%/°C
Temp. Coefficient (Voc): −0.22%/°C
Temp. Coefficient (Isc): +0.05%/°C
Operating Temperature: −40°C to +85°C
Max System Voltage: 1500V DC
Max Series Fuse: 30A
Static Load: 5400Pa front / 2400Pa back
Hail Test: 25mm at 23 m/s
Certifications: IEC 61215, IEC 61730, CE, TÜV
Brand: Taekmo (TKM9D72B series)
Warranty: 2 Years

STC: 1000W/m², 25°C cell temperature, AM1.5. Figures from the manufacturer’s datasheet.

Questions

Frequently Asked Questions

Which NIXDIN products can I connect it to?

The JC-AC-6KW inverter (up to 7 panels per string), the JC-YT-5K (4–6 panels), the JC-AC-3.6KW (3–5 panels), the YC 2400, YC 2400 Classic and YC 3600 (2 panels in series), and the JC-AC-1.2KW (1 panel). It is not for the smaller power stations (YC 300S, YC 600S, YC 1100, YC 1200), whose solar inputs are too low-voltage.

What does “bifacial” mean for me?

The back is glass too, so it also catches light reflected from the surface below. The extra power depends on mounting: panels raised over a light-coloured roof or ground gain the most; panels flat on a dark roof gain little. Treat it as a bonus, not a promise.

Why TBC instead of a normal panel?

All the wiring sits behind the cells, so nothing shades the front. That means higher efficiency, a cleaner all-black look and better performance in heat.

Can I install it myself?

It is a full-size rooftop panel (2.4m long, 32kg) that needs proper mounting rails and correct wiring. We recommend a qualified installer — we can recommend one.

How many panels do I need?

Use our sizing calculator or send us your appliance list on WhatsApp and we will work out the number of panels for your inverter or power station.

How long is the warranty?

2 years, same as every product we sell.

Compare Panels

Premium Taekmo 650W or value Haitai 595W, side by side.

	Taekmo 650W You are here	Haitai 595W
Price	₦170,500	₦130,500
Max power	650W	595W
Cell technology	N-type TBC (back-contact)	N-type TOPCon
Efficiency	24.06%	23.03%
Bifacial	Yes, dual-glass	No, backsheet
Heat loss	−0.26%/°C	−0.29%/°C
Voc / Isc	54.0V / 15.06A	52.64V / 14.13A
Size	2382 × 1134 × 30mm	2278 × 1134 × 30mm
Weight	32.3kg	28.0kg
Frame	Glass-fibre composite	Aluminium
Best for	Premium homes, hot & coastal roofs	Best value, any home or farm
Warranty	2 years	2 years
