New · Best Value

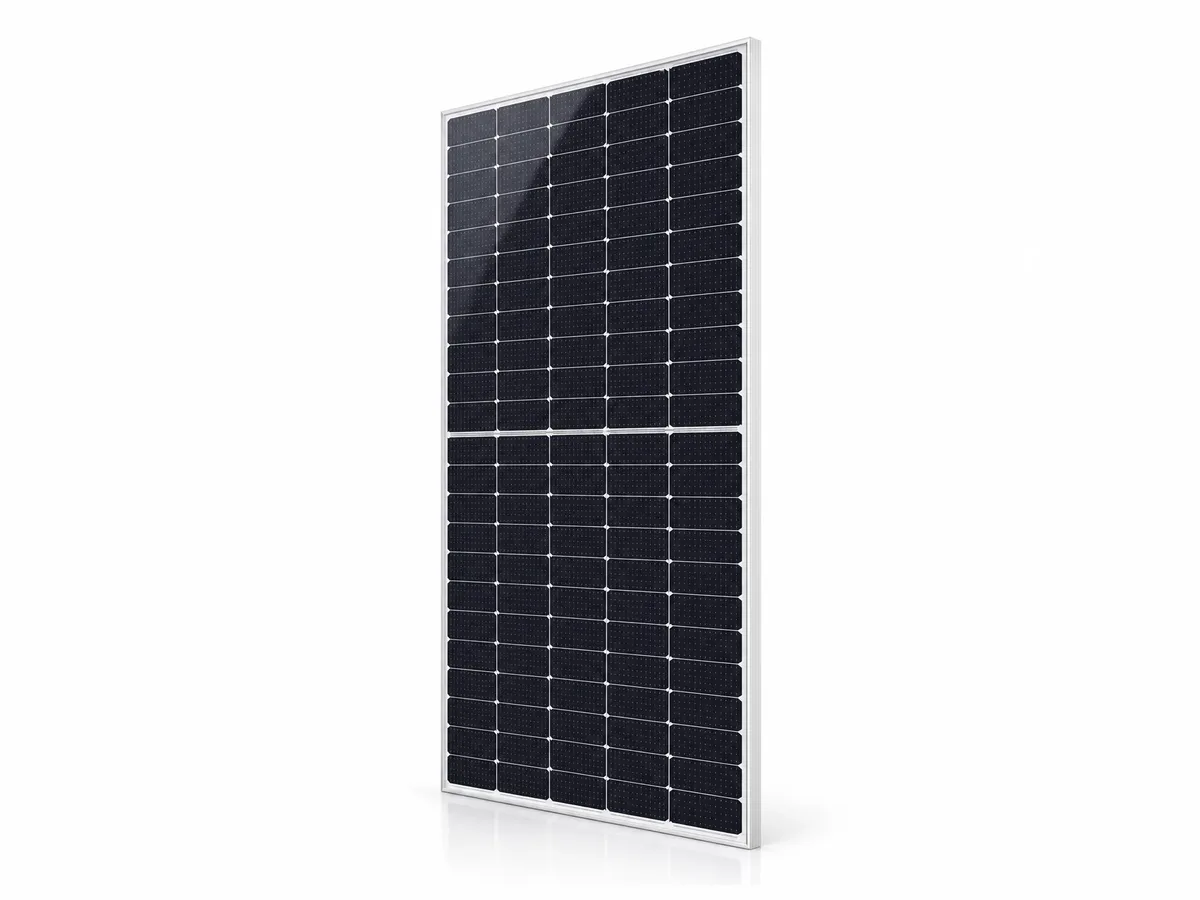

Haitai 595W Mono Solar Panel

Model HTM595MH5-72NT · sold per panel

₦130,500 ₦143,500 per panel

Launch price — save ₦13,000 off the regular ₦143,500.

Our best-value panel. Proven N-type TOPCon cells deliver 595W at 23.03% efficiency, in a lighter 28kg panel with a standard aluminium frame that fits any mounting kit. A smart, affordable way to add solar to your inverter or power station.

₦130,500

Works with your TURSAN system
TURSAN JC-AC-6KW inverterTURSAN JC-AC-6KW inverterUp to 8 panels per string · 9kW solar input→TURSAN JC-YT-5K all-in-oneTURSAN JC-YT-5K all-in-one4–6 panels in one string (up to 4kW)→TURSAN JC-AC-3.6KW inverterTURSAN JC-AC-3.6KW inverter3–5 panels in one string→TURSAN YC 2400 ClassicTURSAN YC 2400 Classic2 panels in series (≈1.2kW)→Not sure how many panels? Use the sizing calculator →
📦 Lagos — pay only after you have inspected itCash, POS or bank transfer at your door. Check every panel before any money changes hands.
🚚 Free Lagos delivery — arrives in 1–3 business days🚌 Outside Lagos: sent by inter-state bus (waybill), ₦10,000–₦25,000 by region + ₦5,000 per panel — shown at checkout. Details🛡 24-month warranty🔧 Mounting kit & installation not included
595W Output23.03% EfficiencyN-Type TOPCon CellsLightweight 28kgAluminium FrameIP68 Junction Box2-Year Warranty595W Output23.03% EfficiencyN-Type TOPCon CellsLightweight 28kgAluminium FrameIP68 Junction Box2-Year Warranty

595W per Panel

N-type TOPCon half-cut cells for strong output at a lower price per watt.

Lighter to Install

28kg — about 4kg lighter than our premium panel, easier on rooftops and installers.

Fits Any Mount

Standard anodised aluminium frame works with normal rails and clamps.

Better in Low Light

Performs well on cloudy, hazy harmattan days and early mornings.

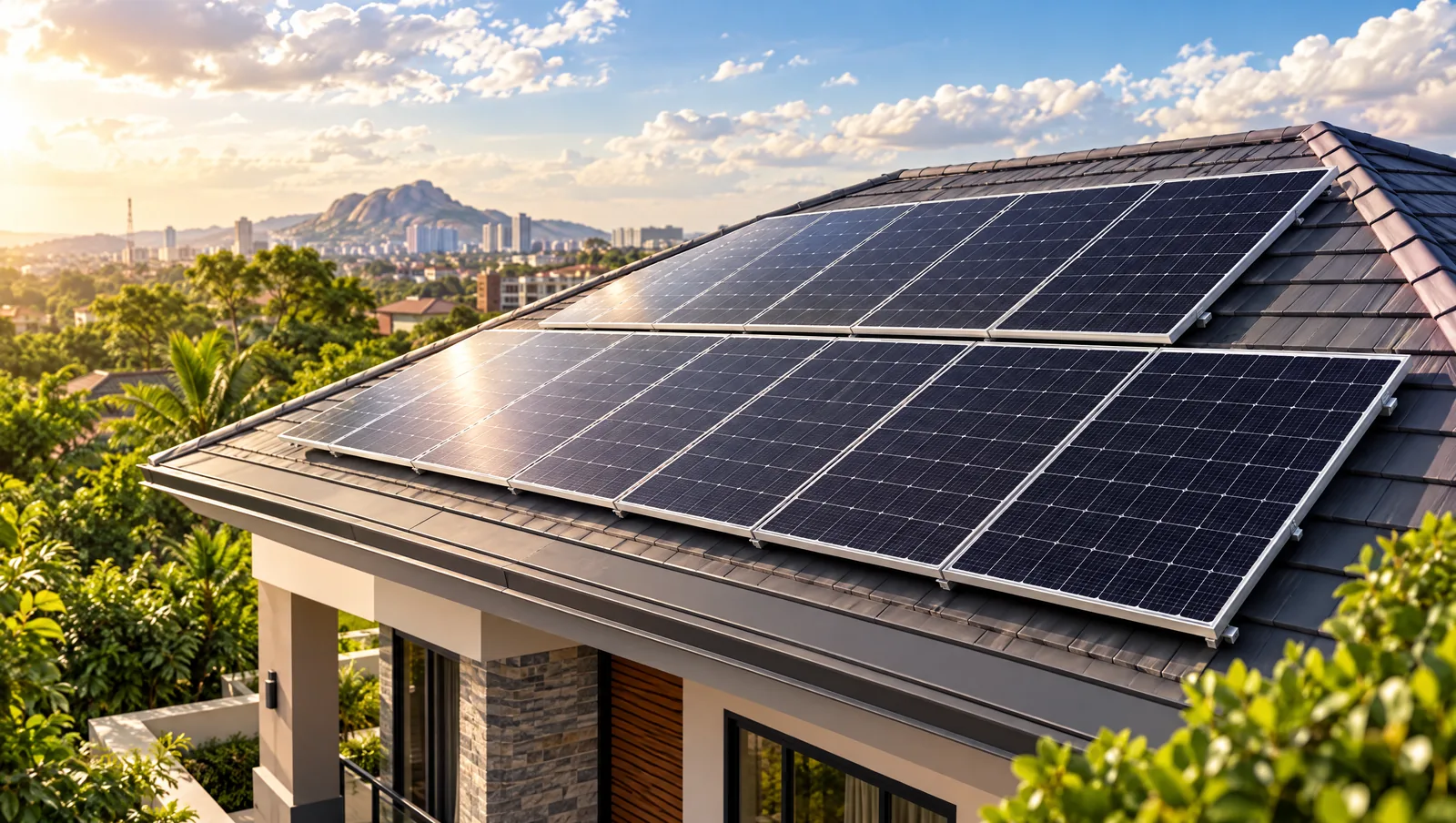

Haitai mono solar panels installed on a family home roof

Clean, proven mono panels on a family home.

Inside the Panel

What It’s Made Of

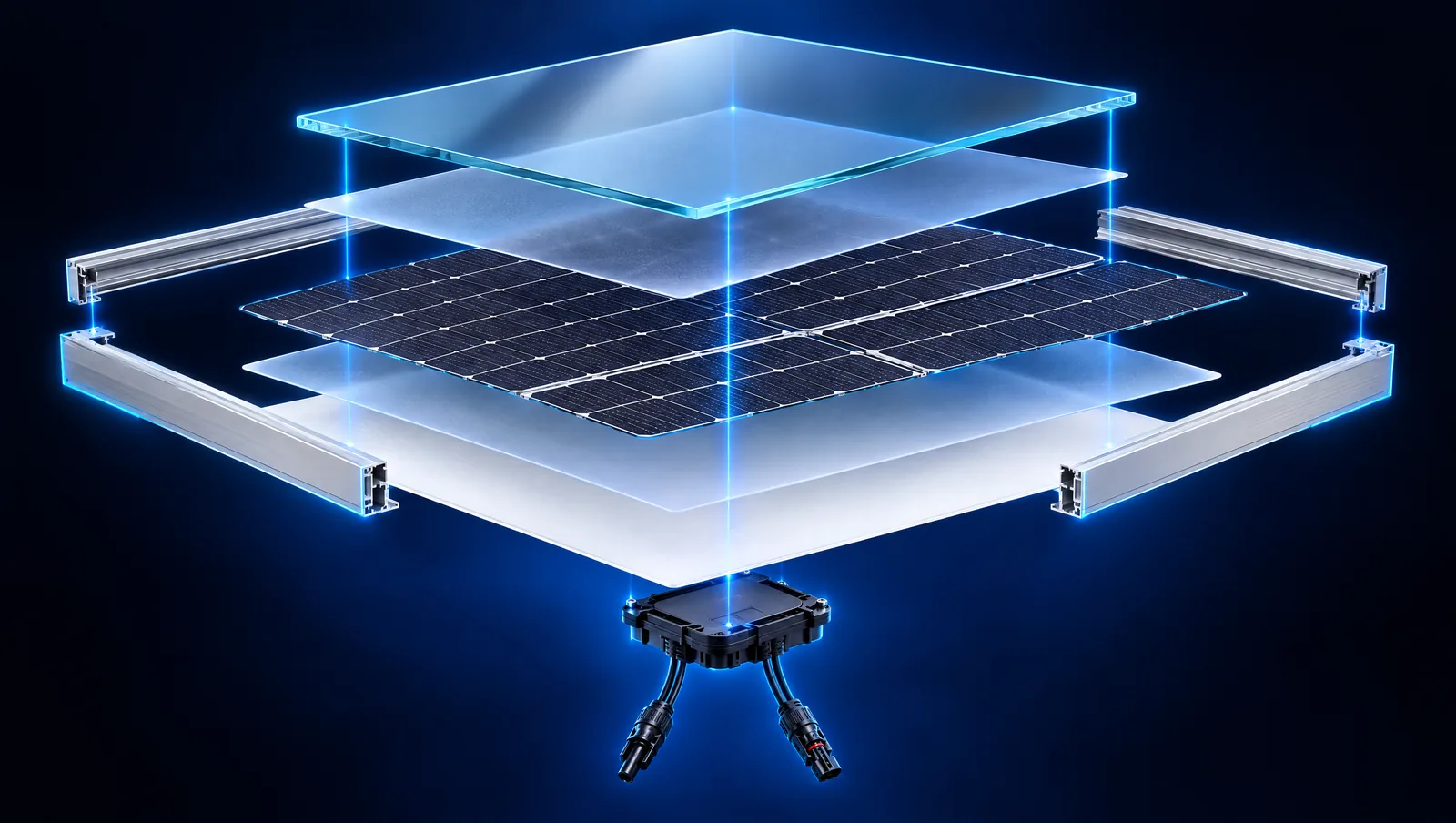

Exploded view of the Haitai 595W solar panel layers
  1. 1Front glass3.2mm high-transmittance, coated tempered glass
  2. 2EVA encapsulantSeals and protects the cells
  3. 3N-type TOPCon cells144 half-cut mono cells (6 × 24, 182mm)
  4. 4EVA encapsulantSecond protective layer
  5. 5BacksheetWeather-resistant polymer backsheet
  6. 6FrameAnodised aluminium alloy
  7. 7Junction boxIP68 with 4mm² cables

Illustration for explanation; layers are bonded together in the real panel.

Compatibility

Works With

How many Haitai 595W panels each TURSAN product can take. Not for the smaller power stations (YC 300S, YC 600S, YC 1100, YC 1200), whose solar inputs are too low-voltage. Your installer confirms the final wiring.

TURSAN JC-AC-6KW inverter
TURSAN JC-AC-6KW inverter
Up to 8 panels per string · 9kW solar input
Best match
TURSAN JC-YT-5K all-in-one
TURSAN JC-YT-5K all-in-one
4–6 panels in one string (up to 4kW)
Compatible
TURSAN JC-AC-3.6KW inverter
TURSAN JC-AC-3.6KW inverter
3–5 panels in one string
Compatible
TURSAN YC 2400 Classic
TURSAN YC 2400 Classic
2 panels in series (≈1.2kW)
Compatible
TURSAN YC 2400
TURSAN YC 2400 / YC 3600
2 panels in series
Compatible
TURSAN JC-AC-1.2KW inverter
TURSAN JC-AC-1.2KW inverter
1 panel
Compatible

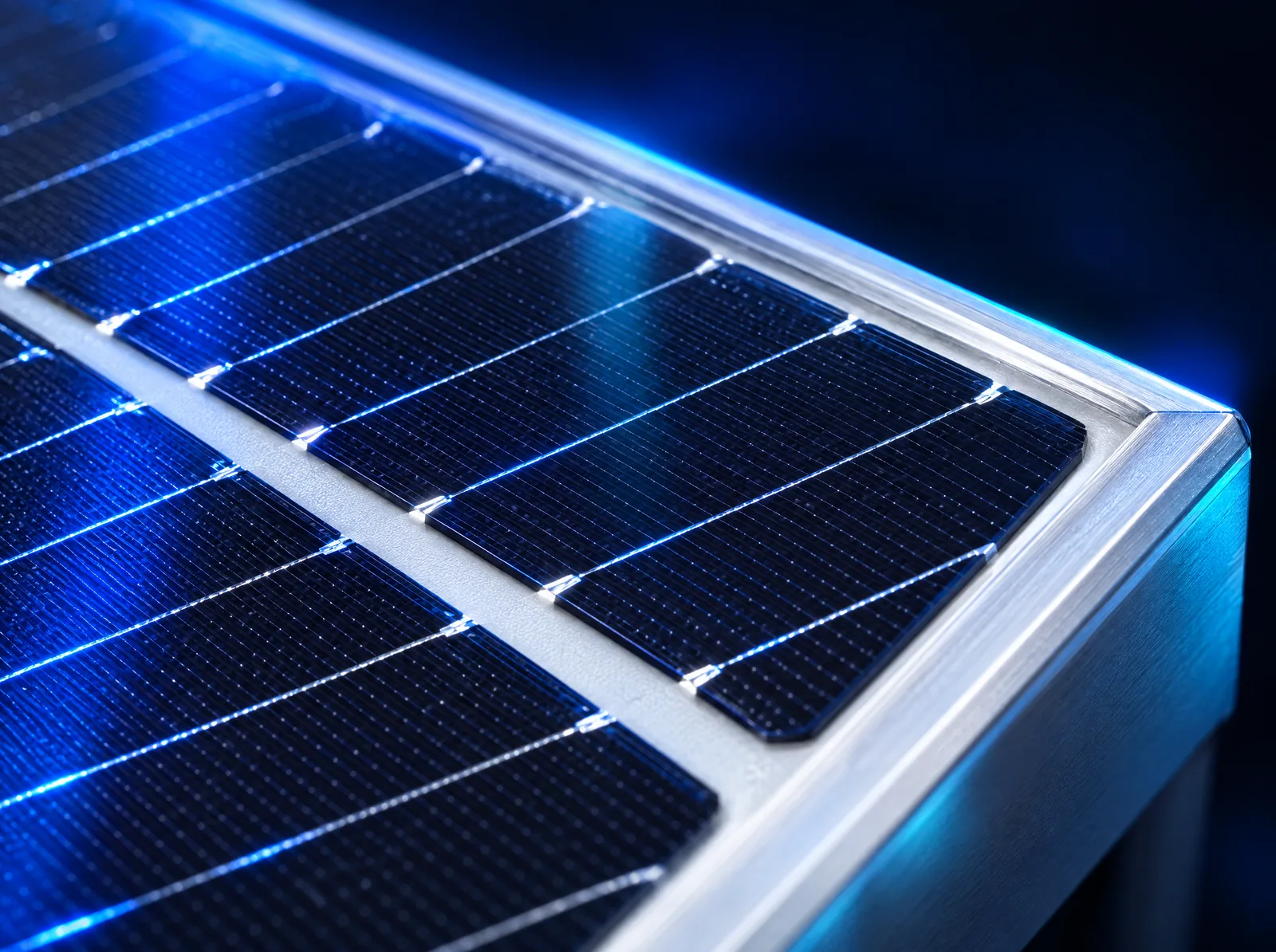

Close-up of the Haitai 595W solar cells
Up close: the cells that do the work.

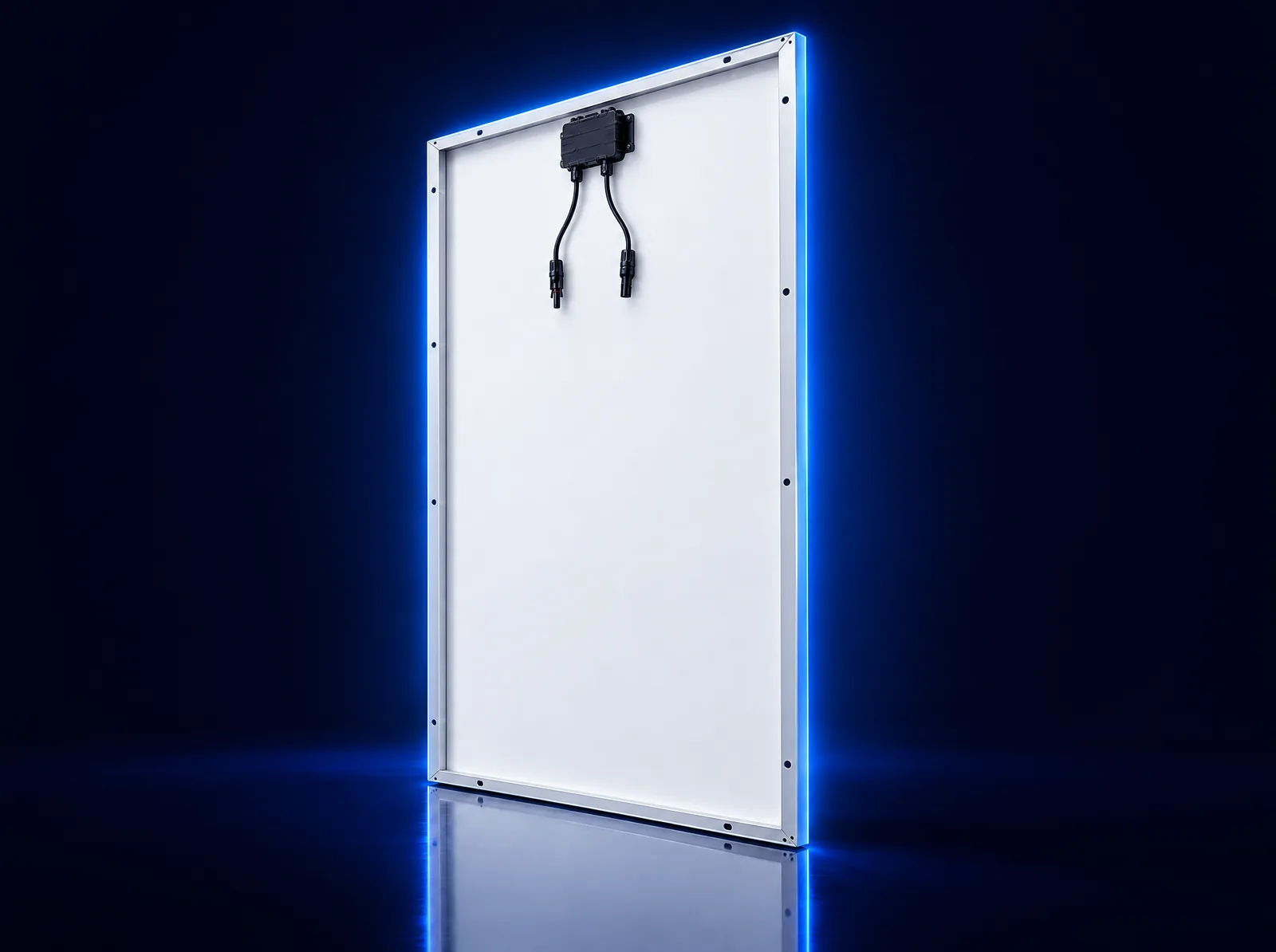

Rear of the Haitai 595W solar panel with IP68 junction box
IP68 junction box with ready-to-connect cables.
0W
Max Power
0%
Efficiency
0kg
Weight
0 yrs
Warranty
Use Cases

Where It Shines

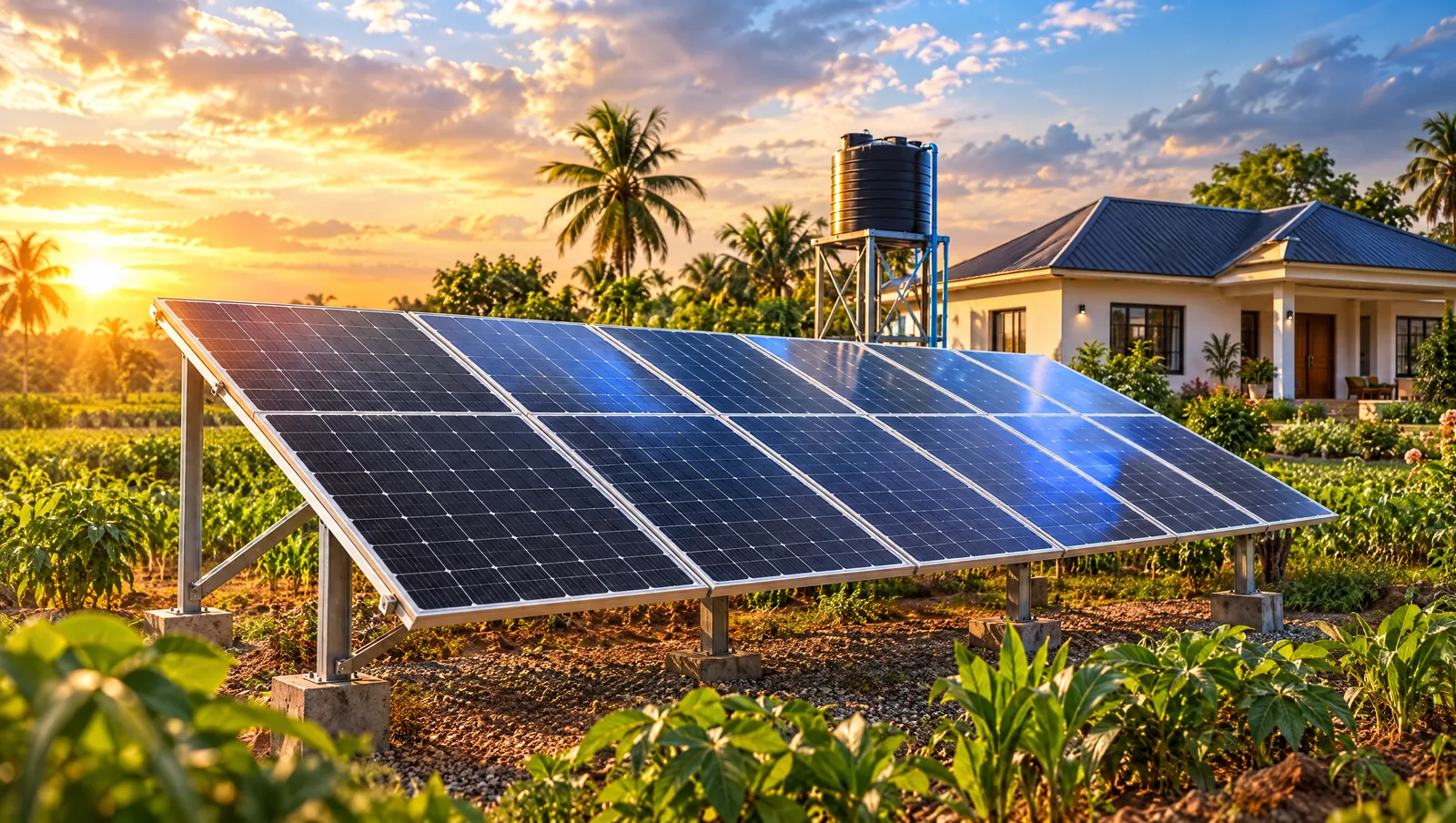

Ground-mounted Haitai panels beside a farmhouse and borehole tank
Farms and boreholes: run pumps on free daytime power.

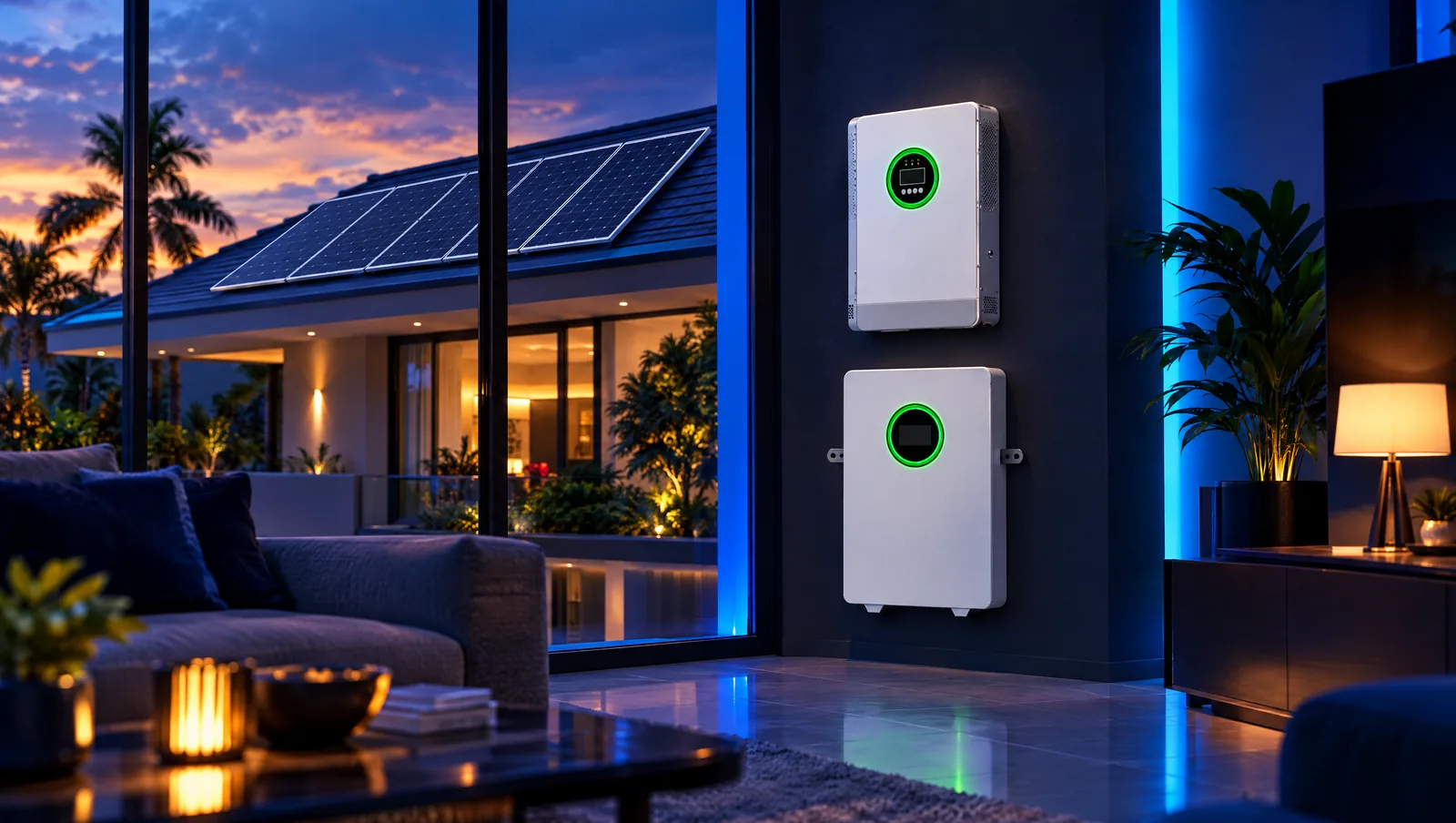

Haitai panels on the roof feeding a TURSAN inverter and wall battery inside
Panels on the roof, inverter and wall battery inside: a complete home system.
Before You Buy

What You Still Need

An Inverter or Power Station
to use the power
Panels make DC power. Connect them to a TURSAN inverter such as the JC-AC-6KW or a power station like the YC 2400 Classic.
Mounting & Installation
not included
Rails, clamps, PV cable and an installer. Each panel is about 2.3–2.4m long, so plan roof space before you order.
Not Sure How Many?
we will work it out
Send us your load list on WhatsApp and we will size the panels for your system. No obligation.
In Real Life

Where It Fits

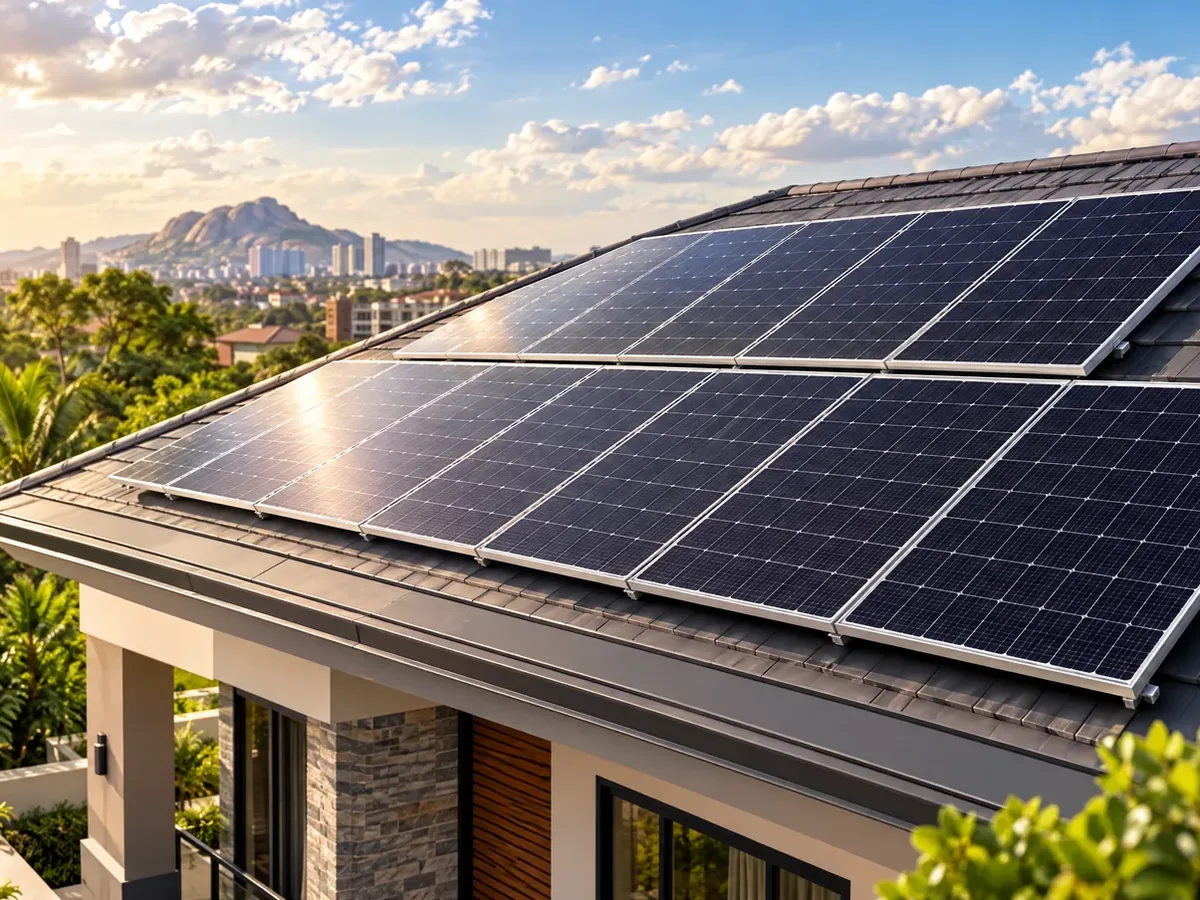

Haitai 595W panels on an Abuja rooftop
Rooftop install in Abuja.

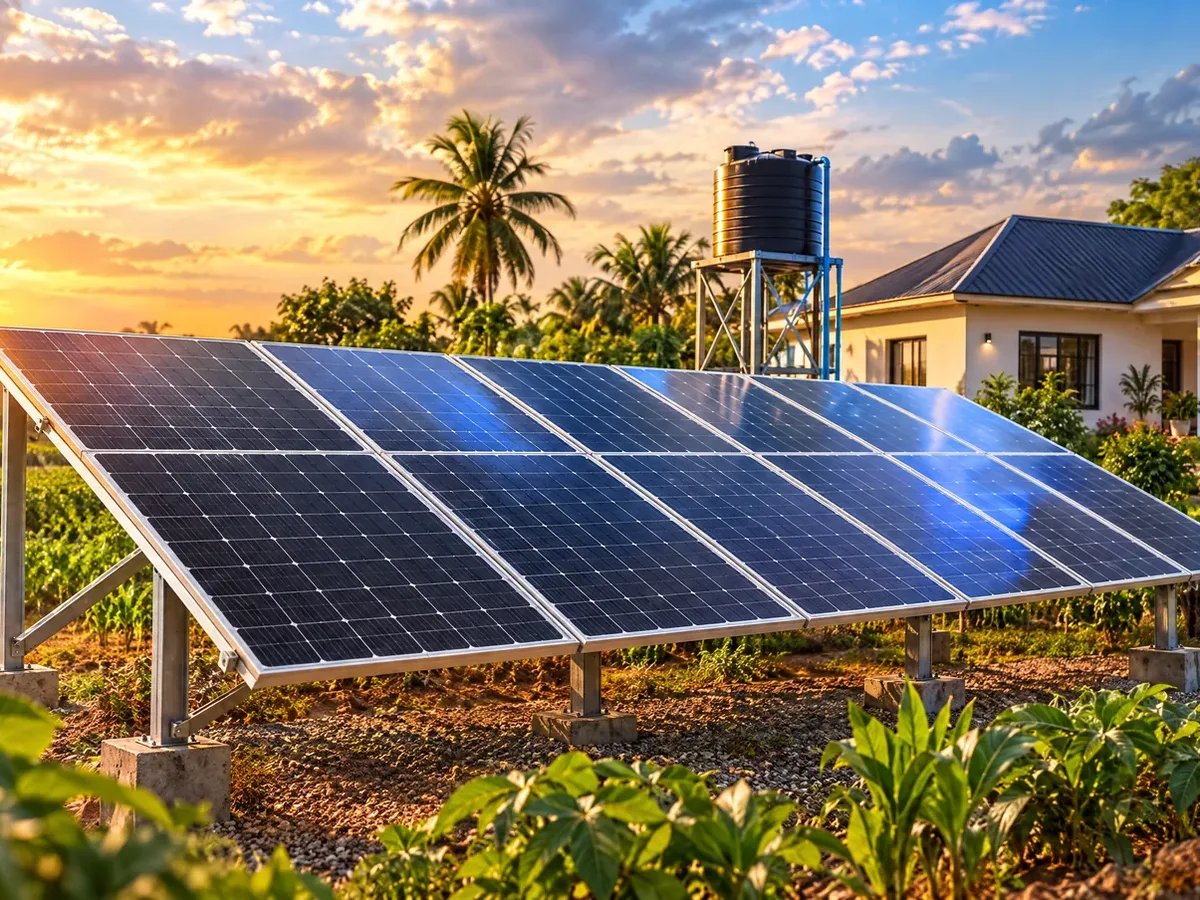

Haitai 595W panels at a farm
Off-grid power for farms and rural sites.
Technical

Specifications

Electrical (STC)

  • Max Power (Pmax): 595W
  • Open-Circuit Voltage (Voc): 52.64V
  • Short-Circuit Current (Isc): 14.13A
  • Voltage at Max Power (Vmp): 44.36V
  • Current at Max Power (Imp): 13.42A
  • Module Efficiency: 23.03%

Real-World (NMOT)

  • Max Power: 449W
  • Voc: 49.90V
  • Isc: 11.61A
  • Vmp: 41.10V
  • Imp: 10.93A
  • Conditions: 800W/m², 20°C ambient

Mechanical

  • Cell Type: N-type TOPCon, mono half-cut (182 × 91mm)
  • No. of Cells: 144 (6 × 24)
  • Type: Monofacial (single glass + backsheet)
  • Dimensions: 2278 × 1134 × 30 mm
  • Weight: 28.0 kg
  • Front Glass: 3.2mm high-transmittance tempered
  • Back: Weather-resistant backsheet
  • Frame: Anodised aluminium alloy
  • Junction Box: IP68
  • Cable: 4mm², 200mm(+) / 250mm(−)

Ratings & Certifications

  • Temp. Coefficient (Pmax): −0.29%/°C
  • Temp. Coefficient (Voc): −0.25%/°C
  • Temp. Coefficient (Isc): +0.045%/°C
  • Operating Temperature: −40°C to +85°C
  • Max System Voltage: 1000/1500V DC
  • Wind / Snow Load: 2400Pa / 5400Pa tested
  • Certifications: IEC 61215, IEC 61730, IEC 62941, ISO 9001/14001/45001
  • Brand: Haitai (TaiJi 2.0, HTM585~605MH5-72NT series)
  • Warranty: 2 Years

STC: 1000W/m², 25°C cell temperature, AM1.5. Figures from the manufacturer’s datasheet.

Questions

Frequently Asked Questions

Which NIXDIN products can I connect it to?

The JC-AC-6KW inverter (up to 8 panels per string), the JC-YT-5K (4–6 panels), the JC-AC-3.6KW (3–5 panels), the YC 2400, YC 2400 Classic and YC 3600 (2 panels in series), and the JC-AC-1.2KW (1 panel). It is not for the smaller power stations (YC 300S, YC 600S, YC 1100, YC 1200), whose solar inputs are too low-voltage.

How is it different from the Taekmo 650W?

The Taekmo is our premium panel: TBC cells, glass on both sides, 650W and slightly better in heat. The Haitai is lighter (28kg vs 32.3kg), uses a standard aluminium frame and costs less per panel — great value for most homes.

Is it bifacial?

No. It is a monofacial panel with a white backsheet, so all power comes from the front. That keeps it lighter and more affordable.

Can I install it myself?

It is a full-size rooftop panel (2.3m long, 28kg) that needs proper mounting rails and correct wiring. We recommend a qualified installer — we can recommend one.

How many panels do I need?

Use our sizing calculator or send us your appliance list on WhatsApp and we will work out the number of panels for your inverter or power station.

How long is the warranty?

2 years, same as every product we sell.

Compare Panels

Premium Taekmo 650W or value Haitai 595W, side by side.

Taekmo 650WTaekmo 650WHaitai 595WHaitai 595W
You are here
Price₦170,500₦130,500
Max power650W595W
Cell technologyN-type TBC (back-contact)N-type TOPCon
Efficiency24.06%23.03%
BifacialYes, dual-glassNo, backsheet
Heat loss−0.26%/°C−0.29%/°C
Voc / Isc54.0V / 15.06A52.64V / 14.13A
Size2382 × 1134 × 30mm2278 × 1134 × 30mm
Weight32.3kg28.0kg
FrameGlass-fibre compositeAluminium
Best forPremium homes, hot & coastal roofsBest value, any home or farm
Warranty2 years2 years
