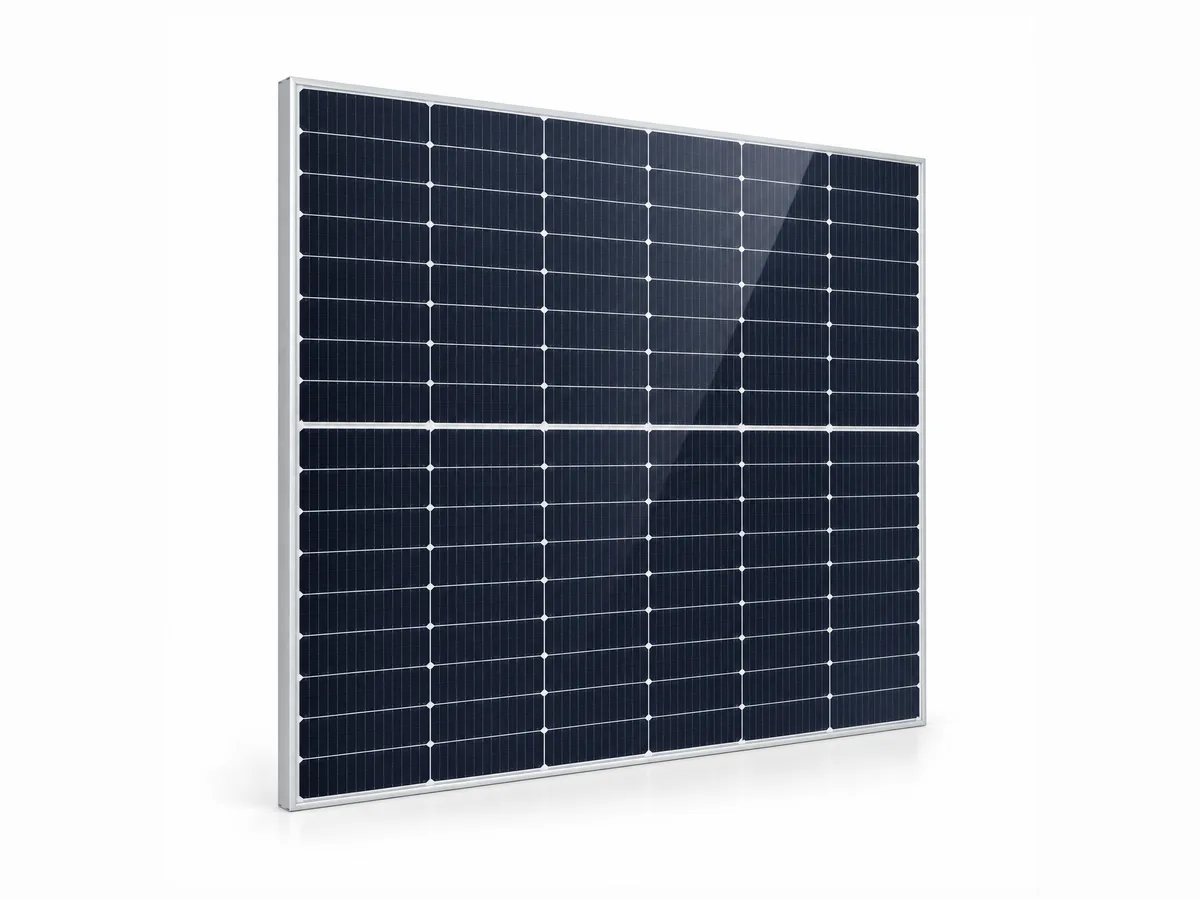

Haitai 730W Bifacial Solar Panel

Name: Haitai 730W Bifacial Solar Panel
Brand: Haitai
SKU: product-23

Model HTM730DMH8-66NT · sold per panel

Coming soon

Our most powerful panel yet. Large 210mm N-type TOPCon half-cells deliver 730W at 23.5% efficiency, and the dual-glass bifacial build can add extra power from light reflected onto the back. Fewer panels for the same output — ideal for big home and business systems.

Coming soon — get an email the moment it lands, with the price.

Or get notified on WhatsApp →

Works with your TURSAN system

TURSAN JC-AC-6KW inverterUp to 8 panels per string · 12 panels max→

TURSAN JC-YT-5K all-in-one4–5 panels in one string→

TURSAN JC-AC-3.6KW inverterAsk us to confirm→Not sure how many panels? Use the sizing calculator →

📦 Launching soon at NIXDINJoin the list and be first to know the price and delivery date.

🚚 Free Lagos delivery — arrives in 1–3 business days🚌 Outside Lagos: sent by inter-state bus (waybill), ₦10,000–₦25,000 by region + ₦5,000 per panel — shown at checkout. Details🛡 24-month warranty🔧 Mounting kit & installation not included

730W Output23.5% Efficiency210mm N-Type CellsBifacial Dual-GlassFewer Panels NeededIP68 Junction Box2-Year Warranty730W Output23.5% Efficiency210mm N-Type CellsBifacial Dual-GlassFewer Panels NeededIP68 Junction Box2-Year Warranty

730W per Panel

Big 210mm N-type TOPCon half-cells — more power from every panel on your roof.

Glass on Both Sides

Bifacial dual-glass design collects reflected light from below for bonus output.

Fewer Panels, Less Roof

Reach the same wattage with fewer panels — fewer rails, clamps and cables.

Built to Last

Passed salt-mist and ammonia corrosion tests, 5400Pa snow and 2400Pa wind load.

Inside the Panel

What It’s Made Of

Exploded view of the Haitai 730W solar panel layers

1Front glass2.0mm high-transmittance reinforced glass
2EncapsulantSeals and protects the cells
3N-type TOPCon cells132 half-cut 210mm cells (6 × 22), multi-busbar
4EncapsulantSecond protective layer
5Rear glass2.0mm glass with white ceramic grid — lets light in from behind
6FrameAnodised aluminium alloy
7Junction boxIP68 with 4mm² cables

Layers are bonded together in the finished panel.

Compatibility

Works With

How many Haitai 730W panels each TURSAN product can take. Not for the smaller power stations (YC 300S, YC 600S, YC 1100, YC 1200), whose solar inputs are too low-voltage. Your installer confirms the final wiring.

TURSAN JC-AC-6KW inverter

Up to 8 panels per string · 12 panels max

Best match

TURSAN JC-YT-5K all-in-one

4–5 panels in one string

Compatible

TURSAN JC-AC-3.6KW inverter

Ask us to confirm

Check first

Before You Buy

What You Still Need

An Inverter or Power Station

to use the power

Panels make DC power. Connect them to a TURSAN inverter such as the JC-AC-6KW or a power station like the YC 2400 Classic.

Mounting & Installation

not included

Rails, clamps, PV cable and an installer. Each panel is about 2.3–2.4m long, so plan roof space before you order.

Not Sure How Many?

we will work it out

Send us your load list on WhatsApp and we will size the panels for your system. No obligation.

Technical

Specifications

Electrical (STC)

Max Power (Pmax): 730W
Open-Circuit Voltage (Voc): 49.27V
Short-Circuit Current (Isc): 18.52A
Voltage at Max Power (Vmp): 41.49V
Current at Max Power (Imp): 17.60A
Module Efficiency: 23.50%

Real-World (NMOT)

Max Power: 550W
Voc: 46.37V
Isc: 15.23A
Vmp: 38.41V
Imp: 14.32A
Conditions: 800W/m², 20°C ambient

Mechanical

Cell Type: N-type TOPCon, mono half-cut (210 × 105mm)
No. of Cells: 132 (6 × 22)
Type: Bifacial dual-glass
Dimensions: 2384 × 1303 × 33 mm
Weight: 37.5 kg
Front / Rear Glass: 2.0mm reinforced / 2.0mm ceramic-grid glass
Frame: Anodised aluminium alloy
Junction Box: IP68
Cable: 4mm², 200mm(+) / 250mm(−)

Ratings & Certifications

Temp. Coefficient (Pmax): −0.29%/°C
Temp. Coefficient (Voc): −0.25%/°C
Temp. Coefficient (Isc): +0.045%/°C
Operating Temperature: −40°C to +85°C
Max System Voltage: 1000/1500V DC
Wind / Snow Load: 2400Pa / 5400Pa tested
Certifications: IEC 61215, IEC 61730, IEC 62941, ISO 9001/14001/45001
Brand: Haitai (TaiHe 2.0, HTM710~730DMH8-66NT series)
Warranty: 2 Years

STC: 1000W/m², 25°C cell temperature, AM1.5. Figures from the manufacturer’s datasheet.

Questions

Frequently Asked Questions

When will it be available?

Very soon. Leave your email above and we will tell you the moment it lands, with the price.

Which NIXDIN products will it work with?

It is made for larger inverter systems: the JC-AC-6KW (up to 8 per string, about 12 panels in total) and the JC-YT-5K (4–5 panels). Ask us about the JC-AC-3.6KW. For power stations, choose our 595W or 650W panels instead.

Why choose 730W over 595W or 650W?

You need fewer panels for the same power, which saves roof space and mounting costs. It is also bifacial, so it can produce extra power from light reflected onto the back.

How big is it?

2.38m long, 1.30m wide and 37.5kg — larger than our other panels, so it needs proper rails and a qualified installer.

How long is the warranty?

2 years, same as every product we sell.

Compare Panels

All our solar panels, side by side.

	Taekmo 650W	Haitai 595W	Haitai 730W
Status	₦170,500	₦130,500	Coming soon
Max power	650W	595W	730W
Cells	N-type TBC	N-type TOPCon	N-type TOPCon 210mm
Efficiency	24.06%	23.03%	23.50%
Bifacial	Yes	No	Yes
Weight	32.3kg	28.0kg	37.5kg
Size	2382×1134mm	2278×1134mm	2384×1303mm
Works with power stations	Yes	Yes	No
Warranty	2 years	2 years	2 years
